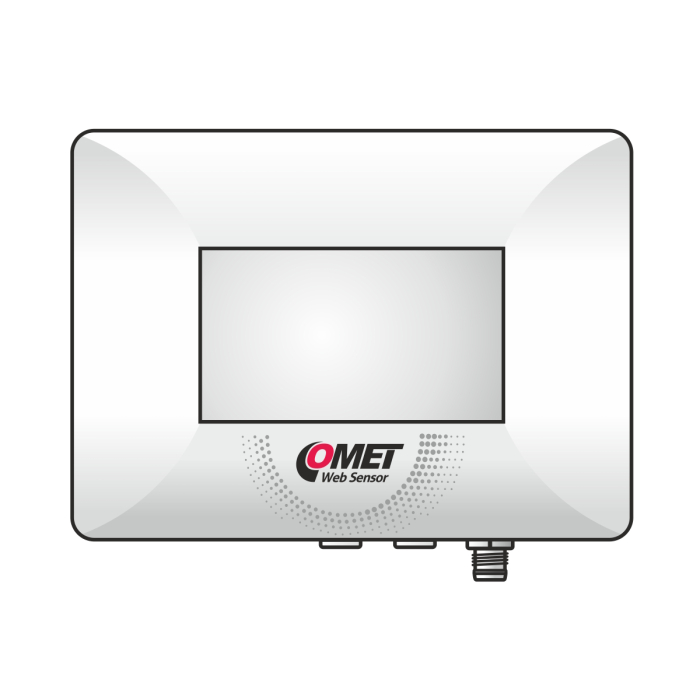

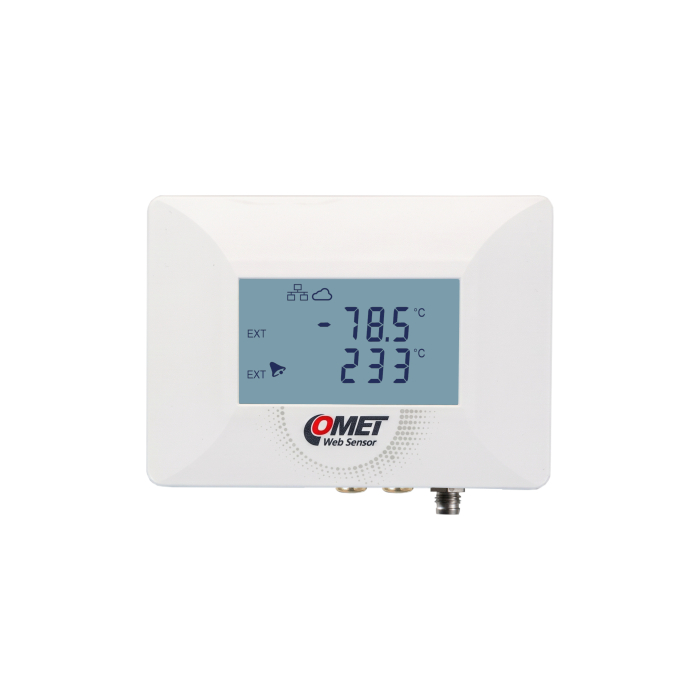

Combined Sensor with Two Pt1000 Inputs and One Input for Digital Probes, Ethernet Output and PoE

Combined Sensor with Two Pt1000 Inputs and One Input for Digital Probes, Ethernet Output and PoE
Combined Sensor with Two Pt1000 Inputs and One Input for Digital Probes, Ethernet Output and PoE
Combined Sensor with Two Pt1000 Inputs and One Input for Digital Probes, Ethernet Output and PoE
Combined Sensor with Two Pt1000 Inputs and One Input for Digital Probes, Ethernet Output and PoE

The TA3645 model represents a hybrid Ethernet sensor that combines two highly accurate analog inputs for Pt1000 resistance probes with one digital input (for T+RH or CO2 probes).

Thanks to this configuration, the TA3645 is a universal monitoring device capable of measuring in the extreme range of -200 °C to +260 °C with an accuracy of ±0.2 °C.

The device is an ideal solution for demanding applications in healthcare or industry: Pt1000 inputs reliably monitor refrigerators, freezers, cryogenic boxes, or ovens, while the digital probe simultaneously monitors the room climate (temperature, humidity, or CO2).

For convenient operation and easy integration, the TA3645 offers a large backlit LCD display, acoustic alarm signaling, and PoE support. It also features a cable resistance compensation function for Pt1000 probes directly from the web interface.

Main Benefits:

  • 2x Pt1000 input + 1x digital T+RH or CO2 probe
  • Extreme temperature measuring range from -200 °C
  • Backlit LCD display, acoustic and LED alarm signaling
  • Power supply 5–24 V or PoE
  • Integrated backup memory
  • Modern web interface, IPv4/IPv6 support, Modbus TCP, COMET Cloud, and fully encrypted communication (HTTPS, SNMPv3, TLS)
  • Integrated detachable bracket for easy installation

  • code
    TA3645
  • Warranty
    3 years
  • On request
Buy
Add to quote

Technical data

Measured value

Temperature
Relative humidity
Counted values (dew point…)
CO2

TEMPERATURE SENSOR

Measuring range Depending on the connected Pt1000 probe
Accuracy Depending on the connected Pt1000 probe
Resolution 0.1 °C

HUMIDITY SENSOR

Measuring range Depending on the connected DSxx probe
Accuracy Depending on the connected DSxx probe
Resolution 0.1% RH

DEW POINT

Measuring range Depending on the connected DSxx probe
Accuracy Depending on the connected DSxx probe
Resolution 0.1 °C

CO2 SENSOR

Measuring range 0 to 10,000 ppm
Accuracy ±(100 ppm + 5% of reading) at 23 °C and 1,013 hPa
Resolution 1 ppm
CO2 probe cable length 1, 2 or 4 meters

GENERAL TECHNICAL DATA

Operating temperature range -30 to +60 °C
Measurement channels 2× Pt1000 inputs + 1× digital T+RH or CO₂ probe, CINCH / ELKA connectors
Calculated values dew point temperature, absolute humidity, specific humidity, mixing ratio, specific enthalpy, humidex, heat index
Supported temperature units degrees Celsius (°C), degrees Fahrenheit (°F)
Temperature compensation of the humidity sensor across the entire temperature range
Power supply Power over Ethernet (IEEE 802.3af) or 5–24 V DC
Network interface Ethernet
IP support IPv4, IPv6
Communication protocols HTTP(s), Web server (WWW), HTTP GET (JSON, XML), Modbus TCP, SNMPv1, SNMPv2c, SNMPv3
Alarm protocols Email (SMTP), Syslog
Measurement interval 1 s
Ingress protection (IP rating) IP30 (electronics)
Dimensions 116 × 85 × 42 mm (without connected probe)
Weight 220 g
Warranty 3 years

Optional accessories and download

Pt1000TG8/C, temperature probe

Pt1000TG8/C, temperature probe

Temperature range: -80 to 200°C
code SN104C
Price 880 ZAR
Pt1000TG8/C, temperature probe, cable 2 m

Pt1000TG8/C, temperature probe, cable 2 m

Temperature range: -80 to 200°C
code SN105C
Price 950 ZAR
Pt1000TG8/C, temperature probe, cable 5 m

Pt1000TG8/C, temperature probe, cable 5 m

Temperature range: -80 to 200°C
code SN108C
Price 1 120 ZAR
Pt1000TG8/C, temperature probe, cable 10 m

Pt1000TG8/C, temperature probe, cable 10 m

Temperature range: -80 to 200°C
code SN113C
Price 1 470 ZAR
Pt1000TG7/C, temperature probe

Pt1000TG7/C, temperature probe

Temperature range: -50 to 200°C
code SN164C
Price 1 250 ZAR
Pt1000TG7/C, temperature probe, cable 2 m

Pt1000TG7/C, temperature probe, cable 2 m

Temperature range: -50 to 200°C
code SN165C
Price 1 330 ZAR
Pt1000TG7/C, temperature probe, cable 5 m

Pt1000TG7/C, temperature probe, cable 5 m

Temperature range: -50 to 200°C
code SN166C
Price 1 450 ZAR
Pt1000TG7/C, temperature probe, cable 10 m

Pt1000TG7/C, temperature probe, cable 10 m

Temperature range: -50 to 200°C
code SN167C
Price 1 740 ZAR
2301-220/C, temperature probe, cable 1 m

2301-220/C, temperature probe, cable 1 m

Temperature range: -30 to 220°C
code SN168C
Price 2 330 ZAR
2021-150/C, temperature probe, cable 1 m

2021-150/C, temperature probe, cable 1 m

Temperature range: -30 to 150°C
code SN169C
Price 3 630 ZAR
PTS350A-2/0, temperature probe, cable 2 m

PTS350A-2/0, temperature probe, cable 2 m

Temperature range: -30 to 130°C
code SN170C
Price 1 280 ZAR
2034-220/C, temperature probe, cable 1 m

2034-220/C, temperature probe, cable 1 m

Temperature range: -30 to 150°C
code SN175C
Price 2 200 ZAR
Ambient temperature probe, 200-80/C

Ambient temperature probe, 200-80/C

Temperature range: -30 to 80°C
code SN177
Price 550 ZAR
2061-200/C, temperature probe, cable 1 m

2061-200/C, temperature probe, cable 1 m

Temperature range: -50 to 200°C
code SN178C
Price 2 660 ZAR
2061-200/C, temperature probe, cable 2 m

2061-200/C, temperature probe, cable 2 m

Temperature range: -50 to 200°C
code SN179C
Price 2 740 ZAR
2061-200/C, temperature probe, cable 5 m

2061-200/C, temperature probe, cable 5 m

Temperature range: -50 to 200°C
code SN180C
Price 2 930 ZAR
2061-200/C, temperature probe, cable 10 m

2061-200/C, temperature probe, cable 10 m

Temperature range: -50 to 200°C
code SN181C
Price 3 290 ZAR
PTS350A-5/C, temperature probe, cable 5 m

PTS350A-5/C, temperature probe, cable 5 m

Temperature range: -30 to 130°C
code SN182C
Price 1 430 ZAR
PTS350A-10/C, temperature probe, cable 10 m

PTS350A-10/C, temperature probe, cable 10 m

Temperature range: -30 to 130°C
code SN183C
Price 1 670 ZAR
Pt1000TGL40/C, temperature probe, cable 1 m

Pt1000TGL40/C, temperature probe, cable 1 m

Temperature range: -30 to 80°C
code SN185C
Price 780 ZAR
Pt1000TGL40/C, temperature probe, cable 2 m

Pt1000TGL40/C, temperature probe, cable 2 m

Temperature range: -30 to 80°C
code SN186C
Price 870 ZAR
Pt1000TGL40/C, temperature probe, cable 5 m

Pt1000TGL40/C, temperature probe, cable 5 m

Temperature range: -30 to 80°C
code SN187C
Price 950 ZAR
Pt1000TGL40/C, temperature probe, cable 10 m

Pt1000TGL40/C, temperature probe, cable 10 m

Temperature range: -30 to 80°C
code SN188C
Price 1 120 ZAR
Pt1000TR160/C, temperature probe, cable 1 m

Pt1000TR160/C, temperature probe, cable 1 m

Temperature range: -30 to 80°C
code SN199C
Price 670 ZAR
Pt1000TR160/C, temperature probe, cable 2 m

Pt1000TR160/C, temperature probe, cable 2 m

Temperature range: -30 to 80°C
code SN200C
Price 700 ZAR
Pt1000TR160/C, temperature probe, cable 5 m

Pt1000TR160/C, temperature probe, cable 5 m

Temperature range: -30 to 80°C
code SN201C
Price 780 ZAR
Pt1000TR160/C, temperature probe, cable 10 m

Pt1000TR160/C, temperature probe, cable 10 m

Temperature range: -30 to 80°C
code SN202C
Price 950 ZAR
Pt1000TR160/C, temperature probe, cable 15 m

Pt1000TR160/C, temperature probe, cable 15 m

Temperature range: -30 to 80°C
code SN203C
Price 1 200 ZAR
Pt1000TR160/C, temperature probe, cable 20 m

Pt1000TR160/C, temperature probe, cable 20 m

Temperature range: -30 to 80°C
code SN204C
Price 1 340 ZAR
2091-250/C, Stick-in probe, cable 1 m

2091-250/C, Stick-in probe, cable 1 m

Temperature range: -50 to 250°C
code SN210C
Price 2 870 ZAR
2091-250/C, Stick-in probe, cable 2 m

2091-250/C, Stick-in probe, cable 2 m

Temperature range: -50 to 250°C
code SN211C
Price 3 070 ZAR
2091-250/C, Stick-in probe, cable 5 m

2091-250/C, Stick-in probe, cable 5 m

Temperature range: -50 to 250°C
code SN212C
Price 3 670 ZAR
2091-250/C, Stick-in probe, cable 10 m

2091-250/C, Stick-in probe, cable 10 m

Temperature range: -50 to 250°C
code SN213C
Price 4 760 ZAR
Pt1000TR125/C, temperature probe, cable 1 m

Pt1000TR125/C, temperature probe, cable 1 m

Temperature range: -190 to 150°C
code SN239C
Price 2 580 ZAR
Pt1000TR125/C, temperature probe, cable 2 m

Pt1000TR125/C, temperature probe, cable 2 m

Temperature range: -190 to 150°C
code SN240C
Price 2 800 ZAR
Pt1000TR125/C, temperature probe, cable 5 m

Pt1000TR125/C, temperature probe, cable 5 m

Temperature range: -190 to 150°C
code SN241C
Price 3 580 ZAR
Pt1000TR125/C, temperature probe, cable 10 m

Pt1000TR125/C, temperature probe, cable 10 m

Temperature range: -190 to 150°C
code SN242C
Price 4 840 ZAR
Pt1000TR050S/C, temperature probe, cable 1 m

Pt1000TR050S/C, temperature probe, cable 1 m

Temperature range: -50 to 400°C
Discontinued
Ultra thin temperature probe Pt1000TG3/C, CINCH connector

Ultra thin temperature probe Pt1000TG3/C, CINCH connector

Temperature range: -50 to 200°C
code SN252C
Price 1 040 ZAR
Temperature probe Pt1000TR050S/C, CINCH connector, cable 10 meters

Temperature probe Pt1000TR050S/C, CINCH connector, cable 10 meters

Temperature range: -50 to 400°C
Discontinued
Temperature probe Pt1000TG8Ex/C, CINCH connector, for ATEX zone II

Temperature probe Pt1000TG8Ex/C, CINCH connector, for ATEX zone II

Temperature range: -30 to 180°C
code SN263C
Price 1 540 ZAR
Temperature probe Pt1000TG8Ex/C, CINCH connector, for ATEX zone II, cable 2 meters

Temperature probe Pt1000TG8Ex/C, CINCH connector, for ATEX zone II, cable 2 meters

Temperature range: -30 to 180°C
code SN264C
Price 1 580 ZAR
Temperature probe Pt1000TG8Ex/C, CINCH connector, for ATEX zone II, cable 5 meters

Temperature probe Pt1000TG8Ex/C, CINCH connector, for ATEX zone II, cable 5 meters

Temperature range: -30 to 180°C
code SN265C
Price 1 780 ZAR
Temperature probe Pt1000TG8Ex/C, CINCH connector, for ATEX zone II, cable 10 meters

Temperature probe Pt1000TG8Ex/C, CINCH connector, for ATEX zone II, cable 10 meters

Temperature range: -30 to 180°C
code SN266C
Price 2 120 ZAR
Temperature probe Pt1000TG8Ex/C, CINCH connector, for ATEX zone II, cable 15 meters

Temperature probe Pt1000TG8Ex/C, CINCH connector, for ATEX zone II, cable 15 meters

Temperature range: -30 to 180°C
code SN267C
Price 2 660 ZAR
Temperature probe Pt1000TR050M/C, CINCH connector, cable 1 meter

Temperature probe Pt1000TR050M/C, CINCH connector, cable 1 meter

Temperature range: -50 to 400°C
code SN270C
Price 1 950 ZAR
Temperature probe Pt1000TR050M/C, CINCH connector, cable 2 meters

Temperature probe Pt1000TR050M/C, CINCH connector, cable 2 meters

Temperature range: -50 to 400°C
code SN271C
Price 2 200 ZAR
Temperature probe Pt1000TR050M/C, CINCH connector, cable 5 meters

Temperature probe Pt1000TR050M/C, CINCH connector, cable 5 meters

Temperature range: -50 to 400°C
code SN272C
Price 2 930 ZAR
Temperature probe Pt1000TR050M/C, CINCH connector, cable 10 meters

Temperature probe Pt1000TR050M/C, CINCH connector, cable 10 meters

Temperature range: -50 to 400°C
code SN273C
Price 4 140 ZAR

Ultra thin digital temperature/humidity probe

Ultra thin digital temperature/humidity probe

Temperature range: -10 to 60°C
code DIGIH/E-1
Price 2 760 ZAR
Ultra thin digital temperature/humidity probe, cable 2 m

Ultra thin digital temperature/humidity probe, cable 2 m

Temperature range: -10 to 60°C
code DIGIH/E-2
Price 2 920 ZAR
Ultra thin digital temperature/humidity probe, cable 5 m

Ultra thin digital temperature/humidity probe, cable 5 m

Temperature range: -10 to 60°C
code DIGIH/E-5
Price 3 260 ZAR
Digital temperature/humidity probe

Digital temperature/humidity probe

Temperature range: -20 to 80°C
code DIGIL/E
Price 2 450 ZAR
Digital temperature/humidity probe, cable 1 m

Digital temperature/humidity probe, cable 1 m

Temperature range: -30 to 105°C
code DIGIL/E-1
Price 2 580 ZAR
Digital temperature/humidity probe, cable 10 m

Digital temperature/humidity probe, cable 10 m

Temperature range: -30 to 105°C
code DIGIL/E-10
Price 3 630 ZAR
Digital temperature/humidity probe, cable 15 m

Digital temperature/humidity probe, cable 15 m

Temperature range: -30 to 105°C
code DIGIL/E-15
Price 4 200 ZAR
Digital temperature/humidity probe, cable 2 m

Digital temperature/humidity probe, cable 2 m

Temperature range: -30 to 105°C
code DIGIL/E-2
Price 2 700 ZAR
Digital temperature/humidity probe, cable 5 m

Digital temperature/humidity probe, cable 5 m

Temperature range: -30 to 105°C
code DIGIL/E-5
Price 3 040 ZAR
Digital temperature/humidity probe

Digital temperature/humidity probe

Temperature range: -20 to 80°C
code DIGIS/E
Price 2 140 ZAR
Digital temperature/humidity probe, cable 1 m

Digital temperature/humidity probe, cable 1 m

Temperature range: -10 to 60°C
code DIGIS/E-1
Price 2 250 ZAR
Digital temperature/humidity probe, cable 10 m

Digital temperature/humidity probe, cable 10 m

Temperature range: -10 to 60°C
code DIGIS/E-10
Price 3 260 ZAR
Digital temperature/humidity probe, cable 15 m

Digital temperature/humidity probe, cable 15 m

Temperature range: -10 to 60°C
code DIGIS/E-15
Price 3 870 ZAR
Digital temperature/humidity probe, cable 2 m

Digital temperature/humidity probe, cable 2 m

Temperature range: -10 to 60°C
code DIGIS/E-2
Price 2 340 ZAR
Digital temperature/humidity probe, cable 5 m

Digital temperature/humidity probe, cable 5 m

Temperature range: -10 to 60°C
code DIGIS/E-5
Price 2 700 ZAR

AC/DC adapter 230Vac to 5Vdc/2.1 A, EU

AC/DC adapter 230Vac to 5Vdc/2.1 A, EU

code A1879eu
Price 340 ZAR
AC/DC adapter 230Vac to 5Vdc/2.1 A, UK

AC/DC adapter 230Vac to 5Vdc/2.1 A, UK

code A1879uk
Price 340 ZAR
AC/DC adapter 230Vac to 5Vdc/2.1 A, US

AC/DC adapter 230Vac to 5Vdc/2.1 A, US

code A1879us
Price 340 ZAR

Accredited temperature calibration

Accredited temperature calibration

code SLU001
Price 1 480 ZAR
Accredited temperature and relative humidity calibration

Accredited temperature and relative humidity calibration

code SLU003
Price 2 070 ZAR

KIT-GSM with modem

KIT-GSM with modem

code KIT-GSM-W
Price 5 850 ZAR
300Mbps Wireless N Nano Router

300Mbps Wireless N Nano Router

code TL-WIFI
Price 1 070 ZAR

Magnetic holder for Web Sensors PAxxxx and TAxxxx

Magnetic holder for Web Sensors PAxxxx and TAxxxx

code SP104
Price On request

sintered bronze sensor cover

sintered bronze sensor cover

code F0000
Price 500 ZAR
plastic sensor protection with stainless filter (gray)

plastic sensor protection with stainless filter (gray)

code F5200
Price 340 ZAR
plastic sensor protection with stainless filter (black)

plastic sensor protection with stainless filter (black)

code F5200B
Price 340 ZAR
PTFE sensor protection, white

PTFE sensor protection, white

code F5300
Price 990 ZAR

COMET Database

COMET Database

code CDB
Price 11 650 ZAR
COMET Cloud

COMET Cloud

code cloud
Price On request
COMET Vision - Software for Dataloggers and Multiloggers

COMET Vision - Software for Dataloggers and Multiloggers

code CV
Price FREE
Database Viewer for Comet Database

Database Viewer for Comet Database

code DBV
Price 2 730 ZAR

Software

download-icon Comet Database One Click Installer (21.1-V)
487.31 MB
download-icon Database Viewer 3.20.0.0 dbapi 21.1
24.33 MB
download-icon Conversions - application for recalculation of values
694.50 KB
download-icon COMET Cloud Lite - Android (Google Play)
download-icon COMET Cloud Lite - iOS (App Store)

Others

download-icon Terms and Conditions COMET System s.r.o.
133.12 KB

Manuals

download-icon Quick Start Manual
961.10 KB
download-icon Declaration of Conformity
140.71 KB
download-icon Software development kit (SDK) / Popis komunikačních protokolů (SDK)
35.68 KB

Catalogs

download-icon Catalogue Sheets - COMET Premium WebSensors 2.0
1.03 MB

Related products

COMET Cloud

COMET Cloud

code cloud
Price On request
COMET Database

COMET Database

code CDB
Price 11 650 ZAR
Sensor for Up to Two Digital Temperature and Humidity or CO2 Probes, Ethernet Output and PoE

Sensor for Up to Two Digital Temperature and Humidity or CO2 Probes, Ethernet Output and PoE

code TA3621
Price On request
Sensor for One Digital Temperature and Humidity or CO2 Probe, with Internal Barometric Pressure Sensor, Ethernet Output and PoE

Sensor for One Digital Temperature and Humidity or CO2 Probe, with Internal Barometric Pressure Sensor, Ethernet Output and PoE

code TA7611
Price On request
Compact Temperature and Humidity Sensor, Ethernet Output and PoE

Compact Temperature and Humidity Sensor, Ethernet Output and PoE

code TA3610
Price On request
Multi-Plate Radiation Shield for Weather Sensors

Multi-Plate Radiation Shield for Weather Sensors

Discontinued
WiFi temperature and relative humidity sensor with integrated probe

WiFi temperature and relative humidity sensor with integrated probe

code W3710
Price 9 100 ZAR
WiFi temperature and relative humidity sensor for external probe

WiFi temperature and relative humidity sensor for external probe

code W3711
Price 7 060 ZAR
WiFi temperature and relative humidity sensor for two external probes

WiFi temperature and relative humidity sensor for two external probes

code W3721
Price 7 520 ZAR
Wireless thermometer, hygrometer for external probe, Sigfox IoT

Wireless thermometer, hygrometer for external probe, Sigfox IoT

code W3811
Price 4 540 ZAR
IoT Wireless Temperature and Relative Humidity Datalogger for external probe, with built-in 4G modem

IoT Wireless Temperature and Relative Humidity Datalogger for external probe, with built-in 4G modem

code U3121G
Price 13 760 ZAR
IoT Wireless Temperature, Relative Humidity, CO2 and atmospheric pressure Datalogger with built-in 4G modem

IoT Wireless Temperature, Relative Humidity, CO2 and atmospheric pressure Datalogger with built-in 4G modem

code U4440G
Price 20 200 ZAR
Web Sensor with PoE - remote thermometer hygrometer with Ethernet interface

Web Sensor with PoE - remote thermometer hygrometer with Ethernet interface

code T3610
Price 8 930 ZAR
Web Sensor with PoE - remote thermometer hygrometer with Ethernet interface

Web Sensor with PoE - remote thermometer hygrometer with Ethernet interface

code T3611
Price 9 180 ZAR

Contact

COMET AFRICA
Suite 32, Cornerstone Business Park
Brackengate, Hamman Road
Brackenfell, 7560
Cape Town, South Africa

E-mail: info@comet-africa.com

Telephone customer support
Phone: +27 21 975 2111

What we do

COMET AFRICA specialises in the supply, design and implementation of cold chain management solutions. With many years’ experience in cold chain management, COMET AFRICA has grown by adding new products to its market offering, namely: SMS notification, GPRS Remote Data Access, Online Data Hosting, IOT sensors and Custom Software for turnkey solutions.

We have a number of distribution points throughout Africa, including Kenya, Uganda, Ghana, Zambia, Botswana and Lesotho.

We offer a wide range of products from Hand Held devices and Loggers, to fully integrated Temperature, Humidity, CO2 and Pressure monitoring, recording, alarming and notifying systems.

The business philosophy of COMET AFRICA is to continually expand by upgrading products and services to keep up with changing technology.

The Success of COMET AFRICA to date has resulted from the delivery of high end products and solutions to the industrial sector with continued attention to customer service.



© Copyright 2026 COMET SYSTEM, s.r.o. | Webdesign by Spaneco
